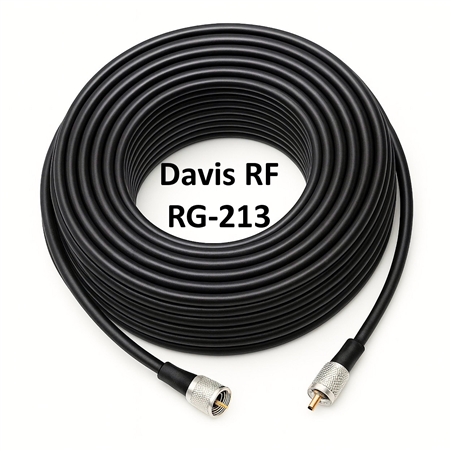

Davis RF RG-213 Assemblies – Low Loss 50 Ohm Pre-Terminated Coax Cables
Our Davis RF RG-213 Assemblies are pre-terminated low loss 50 Ohm coaxial cables built with genuine Davis RF RG-213 coax. These assemblies are designed for long RF feedlines requiring low attenuation and high power handling.
Key Features:
- ✅ Genuine Davis RF RG-213 coaxial cable
- ✅ Solid copper center conductor
- ✅ 50 Ohm impedance for HF, VHF, UHF frequencies
- ✅ Dual shielded for EMI/RFI protection
- ✅ UV-resistant jacket for indoor and outdoor use
Specifications:
- ✅ Cable Type: Davis RF RG-213
- ✅ Impedance: 50 Ohms
- ✅ Center Conductor: Solid copper
- ✅ Dielectric: Solid polyethylene
- ✅ Shielding: Tinned copper braid
- ✅ Jacket: Black UV-resistant PE jacket
- ✅ Attenuation:
- ~1.8 dB per 100 ft @ 50 MHz
- ~3.2 dB per 100 ft @ 150 MHz
- ~5.5 dB per 100 ft @ 450 MHz
Common Applications:
- ✅ HF, VHF, UHF base station feedlines
- ✅ High-power amateur radio installations
- ✅ Commercial RF and repeater systems
- ✅ Long RF feedlines requiring low loss
- ✅ RF feedlines with high EMI/RFI exposure
Available in multiple lengths and connector configurations. All Davis RF RG-213 Assemblies are tested and ready for installation. Contact us for custom assemblies or technical assistance.
|
|
|
