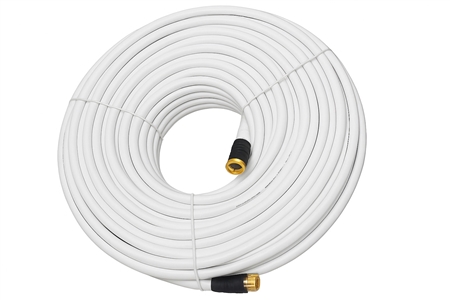

Marine Grade RG-213 – 50 Ohm Low Loss Coax Assembly
Our Marine Grade RG-213 Coax is a premium 50 Ohm coaxial cable designed for marine and outdoor applications. Built with an extra rugged UV-resistant jacket and corrosion-resistant tinned copper conductors, it is ideal for use in harsh marine environments.
Key Features:
- ✅ Marine Grade 50 Ohm RG-213 coaxial cable
- ✅ Tinned copper center conductor and braid
- ✅ Low-loss performance across HF, VHF, UHF frequencies
- ✅ High shielding effectiveness for EMI/RFI rejection
- ✅ UV and moisture resistant jacket for marine and outdoor use
Specifications:
- ✅ Cable Type: Marine Grade RG-213
- ✅ Impedance: 50 Ohms
- ✅ Center Conductor: Stranded tinned copper
- ✅ Dielectric: Solid polyethylene
- ✅ Shielding: Tinned copper braid
- ✅ Jacket: Black UV-resistant PE jacket (Marine Grade)
- ✅ Attenuation:
- ~1.8 dB per 100 ft @ 50 MHz
- ~3.2 dB per 100 ft @ 150 MHz
- ~5.5 dB per 100 ft @ 450 MHz
Common Applications:
- ✅ Marine HF, VHF, UHF antenna feedlines
- ✅ Boat and shipboard RF installations
- ✅ Coastal and offshore radio systems
- ✅ Outdoor RF installations exposed to moisture and UV
- ✅ RF feedlines requiring corrosion resistance and durability
Available by the foot and in custom assemblies. All Marine Grade RG-213 Coax is tested and ready for marine and outdoor RF applications. Contact us for bulk orders or custom lengths.
|
|
|
