Belden 8214 RG-8U Jumper Assemblies

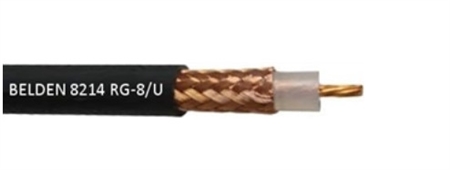

Belden 8214 RG-8U jumper assemblies use 50 Ohm RG-8U coaxial cable with PL-259 connectors. This cable features a stranded bare copper center conductor, foam polyethylene dielectric, and tinned copper braid shield with a flexible black PVC jacket.
Belden 8214 RG-8U Coax Specifications:
- ✅ 50 Ohm impedance
- ✅ Stranded bare copper center conductor
- ✅ Foam polyethylene dielectric
- ✅ 95% tinned copper braid shield
- ✅ Black PVC jacket
- ✅ Outside diameter: 0.405 inch (10.29 mm)
- ✅ Frequency range: DC to 1 GHz
Applications:
- ✅ RF jumper cables for HF, VHF, UHF systems
- ✅ Station interconnects
- ✅ Feedline jumpers
- ✅ Test equipment connections
- ✅ Marine and mobile installations
Available in multiple lengths. Each assembly is built and tested using Belden 8214 RG-8U cable and PL-259 connectors.
|
|
|
